基于CVAE的二维分子条件生成
上篇文章我们实现了基于VAE架构的分子生成，他支持有上限原子的分子随机生成，接下来我们将学习如何引入条件控制，从而做到生成给定条件（分子性质）范围的分子，本文项目结构如下：
bash
CVAE 2D/
├── data/ # 数据集文件
│ └── ZINC.csv
├── result/ # 结果目录
│ ├── model.pth # 模型权重
│ ├── result.csv # 推理生成的结果
│ └── losses.csv # 平均损失记录
├── config.py # 超参数配置文件
├── dataset.py # 加载数据集
├── model.py # 训练代码
├── generate.py # 生成代码
└── draw.py # 绘图分析脚本项目结构和VAE版本大致相同，我们把训练和推理的代码分开实现，同时补充进行数据分析的脚本函数。
本文基于该文章进行了代码优化和改造：
参考文献：MGCVAE: Multi-Objective Inverse Design via Molecular Graph Conditional Variational Autoencoder，文章链接在此处
配置信息
以下文件在config.py中实现，这些和VAE生成的配置完全一致。
python
import torch
import torch.nn as nn
from rdkit import Chem
from rdkit.Chem import rdchem
from pathlib import Path
result_path = Path('./result')
result_path.mkdir(exist_ok=True, parents=True)
# 数据集路径
DATA_FILE = "./data/ZINC.csv"
# 权重保存文件
PT_PATH = "./result/model.pth"
# 损失保存路径
LOSS_PATH = "./result/losses.csv"
# 推理生成结果文件
RESTULT_PATH = "./result/result"
# 测试集/训练集划分比例
DIVIDE_RATIO = 0.1主要增加了CONDITIONS字段，用于配置需要生成的“条件”约束，这里我们约束的是logP和MR值。
python
# 要生成的分子数
GEN_NUM = 10000
# 生成条件
CONDITIONS = {
'logP_list':[0, -1, -2, -3],
'mr_list': [2, 3, 4, 5, 6]
}模型配置和超参数等也和之前的完全一致，最后增加了COND_DIM条件编码向量的维度，这里设置为16。
python
# 批次大小
BATCH_SIZE = 1000
# 训练周期
EPOCH = 200
# 学习率
LR = 0.00005
# 设备
DEVICE = "cuda" if torch.cuda.is_available() else "cpu"
# 支持的原子类型列表
ATOM_LIST = ( 'C', 'O', 'N', 'H', 'P', 'S', 'F', 'Cl', 'Br', 'I', 'B', 'Si', 'Sn')
ATOM_LIST = [0] + [Chem.Atom(x).GetAtomicNum() for x in ATOM_LIST]
# 支持的原子种类数
ATOM_LEN = len(ATOM_LIST)
# 支持的键类型列表
BOND_LIST = (
rdchem.BondType.ZERO,
rdchem.BondType.SINGLE,
rdchem.BondType.DOUBLE,
rdchem.BondType.TRIPLE,
rdchem.BondType.AROMATIC
)
# 支持的键类型数
BOND_LEN = len(BOND_LIST)
# 索引和实际类型对照表
atom_encoder_m = {l: i for i, l in enumerate(ATOM_LIST)}
atom_decoder_m = {i: l for i, l in enumerate(ATOM_LIST)}
bond_encoder_m = {l: i for i, l in enumerate(BOND_LIST)}
bond_decoder_m = {i: l for i, l in enumerate(BOND_LIST)}
# VAE参数配置
# Encoder: IN_DIM -> H1_DIM -> H2_DIM -> Z_DIM
# Decoder: Z_DIM -> H2_DIM -> H1_DIM -> IN_DIM (out)
# 最大原子数
MAX_SIZE = 16
# 分子特征矩阵列数
F_COL = 1 + ATOM_LEN + MAX_SIZE * BOND_LEN
# 输入维度
IN_DIM = MAX_SIZE * F_COL
# 隐空间维度
Z_DIM = 128
# 隐藏层1
H1_DIM = 512
# 隐藏层2
H2_DIM = 256
# 条件编码维度
COND_DIM = 16数据集加载
该部分代码在dataset.py中实现。
节点特征矩阵、边特征矩阵和mol对象转特征矩阵的函数和VAE部分完全一致。
python
import pandas as pd
from rdkit import Chem
import torch
from torch.utils.data import Dataset, DataLoader
from config import *
import numpy as np
# 生成节点特征矩阵
def node_features(mol, max_length=MAX_SIZE, atom_types=ATOM_LEN):
# 预制全零张量
features = np.zeros([max_length, atom_types], dtype=np.float32)
# 填充真实原子
for i, atom in enumerate(mol.GetAtoms()):
atomic_num = atom.GetAtomicNum()
if atomic_num in atom_encoder_m:
features[i, atom_encoder_m[atomic_num]] = 1.0
# 多出的原子标记为0号（虚拟原子）
actual_atoms = min(mol.GetNumAtoms(), max_length)
features[actual_atoms:, 0] = 1.0
return torch.tensor(features, dtype=torch.float32)
# 生成边特征矩阵
def bond_features(mol, bond_encoder_m, max_length=MAX_SIZE):
bond_types = len(bond_encoder_m)
# 预先构建三维张量，所有键均为“非键”编码的独热向量
A = torch.zeros(bond_types, dtype=torch.int32)
A[0] = 1
A = A.expand(max_length, max_length, bond_types).clone()
# 遍历每个边
for bond in mol.GetBonds():
begin = bond.GetBeginAtomIdx() # 键的起始原子索引
end = bond.GetEndAtomIdx() # 键的终止原子索引
i = min(begin, end) # 行号=原子对中较小的索引
j = max(begin, end) # 列号=原子对中较大的索引
# 构建边类型独热编码向量，替换原值
bond_code = bond_encoder_m[bond.GetBondType()]
bond_onehot = torch.zeros(bond_types, dtype=torch.int32)
bond_onehot[bond_code] = 1
A[i, j] = bond_onehot
# 将三维矩阵按最后一维展开，得到二维特征矩阵
A = A.reshape(max_length, -1)
return A
# mol对象生成分子特征矩阵
def mol_to_graph(mol, length, smiles='', max_num=MAX_SIZE):
try:
mol_length = int(length) - 1
vec_length = torch.zeros([max_num,1], dtype=torch.float)
vec_length[mol_length, 0] = 1.0
graph = torch.cat([vec_length, node_features(mol, max_num),bond_features(mol, bond_encoder_m)], 1).float()
return graph
except Exception as e:
print('Error:', smiles, 'more information:', e)随后是读取CSV数据集的内容，创建mol对象，和CVAE也完全一致。
python
# 读取数据集源文件
df = pd.read_csv(DATA_FILE)
# 按设定大小抽样
df = df[df['Length'] <= MAX_SIZE].reset_index(drop=True)
# 生成mol对象列
df["mol"] = df["SMILES"].apply(lambda x: Chem.MolFromSmiles(x))
# 去除空值
df = df[df["mol"].notna()].reset_index(drop=True)
# 生成特征矩阵列
df['graph'] = df[['mol', 'Length', 'SMILES']].apply(
lambda row: mol_to_graph(mol=row['mol'], length=row['Length'], smiles=row['SMILES']),
axis=1
)
# 去除空值
df = df[df['graph'].notna()].reset_index(drop=True)不同的是，这里我们把df对象传入数据集类，构建get、len方法，不同的是这里返回的是特征矩阵、logP、MR三个张量。
python
# 定义数据集类
class MolGraphDataset(Dataset):
def __init__(self, df):
self.df = df.reset_index(drop=True)
def __len__(self):
return self.df.shape[0]
def __getitem__(self, idx):
row = self.df.iloc[idx]
feat_tensor = row['graph']
logp_tensor = torch.tensor([row['logP']], dtype=torch.float32)
mr_tensor = torch.tensor([row['MR']], dtype=torch.float32)
return feat_tensor, logp_tensor, mr_tensor 划分数据集的内容也和VAE完全一致。
python
# 初始化自定义数据集
mol_dataset = MolGraphDataset(df)
# 划分训练/测试集
tr = 1 - DIVIDE_RATIO
train_size = int(len(mol_dataset) * tr)
test_size = len(mol_dataset) - train_size
# 随机划分
train_dataset, test_dataset = torch.utils.data.random_split(
mol_dataset,
[train_size, test_size],
generator=torch.Generator().manual_seed(42)
)
# 构建DataLoader
train_loader = DataLoader(
dataset=train_dataset,
batch_size=BATCH_SIZE,
shuffle=True,
drop_last=True,
)
test_loader = DataLoader(
dataset=test_dataset,
batch_size=BATCH_SIZE,
shuffle=False,
drop_last=True,
)对Dataloader进行单元测试，单批次会返回三个张量，看看他们的形状。
python
if __name__ == "__main__":
print(f"Train dataset size: {len(train_dataset)} samples")
print(f"Test dataset size: {len(test_dataset)} samples")
print(f"Train loader batch count: {len(train_loader)}")
print(f"Test loader batch count: {len(test_loader)}")
# 测试加载单个批次
for feat_tensor, logp_tensor, mr_tensor in train_loader:
print(f"Feature shape: {feat_tensor.shape}")
print(f"LogP shape: {logp_tensor.shape}")
print(f"MR shape: {mr_tensor.shape}")
break可以看到，全部10w条样本以9:1被划分为训练集和测试集，每批次1000个样本，特征矩阵
python
Train dataset size: 90000 samples
Test dataset size: 10000 samples
Train loader batch count: 90
Test loader batch count: 10
Feature shape: torch.Size([1000, 16, 95])
LogP shape: torch.Size([1000, 1])

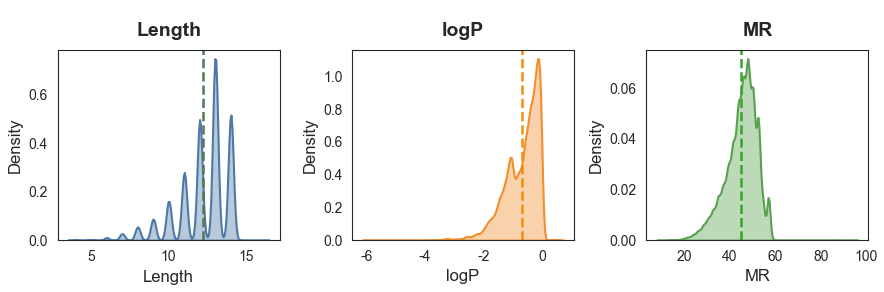

MR shape: torch.Size([1000, 1])此外，我们可以查看数据集的分布情况：
python
========== 各属性关键统计信息 ==========
Length logP MR
mean 12.20 -0.69 44.79
std 1.66 0.59 6.94
min 4.00 -5.97 9.70
max 16.00 0.58 94.42我们的数据集分子大小最大是16个原子，logP集中在[-6,1]，MR集中在[20,60]，因此配置MAX_SIZE = 16，COND_DIM = 16完全足够。
在生成时，条件限制在
python
CONDITIONS = {
'logP_list':[0, -1, -2, -3],
'mr_list': [2, 3, 4, 5, 6]
}模型定义
该部分代码在model.py中实现，完成模型的定义、损失函数计算和必要的工具函数。
损失函数依然使用KL散度+重构BCE损失，主要增加了生成条件编码向量的函数。
因为我们的属性值是连续特征，实际上这里是将其做了风箱划分，利用round四舍五入把连续特征变成离散特征，这样就可以使用独热编码向量来表征属性条件。
python
import torch
import torch.nn as nn
import torch.nn.functional as F
from config import *
# 损失函数
def loss_function(recon_x, x, mu, log_var):
# BCE损失
BCE = F.binary_cross_entropy(recon_x, x.view(-1, IN_DIM), reduction='sum')
# KL散度损失
KLD = -0.5 * torch.sum(1 + log_var - mu.pow(2) - log_var.exp())
return BCE + KLD
# 条件编码
def one_hot(labels, class_size=COND_DIM):
targets = torch.zeros(labels.shape[0], class_size, device=DEVICE)
for i, label in enumerate(labels):
targets[i, round(label.item())] = 1
return targets随后是模型的结构定义，因为我们是将分子图展平为一维向量送入VAE中，因此在有条件的情况下，只需要把多个条件向量拼接到分子图向量后即可，这样模型的输入维度将变成
python
# 模型定义
class CVAE(nn.Module):
def __init__(self, x_dim=IN_DIM, h_dim1=H1_DIM, h_dim2=H2_DIM, z_dim=Z_DIM, c_dim=COND_DIM):
super(CVAE, self).__init__()
self.x_dim = x_dim
# 编码器
self.fc1 = nn.Linear(x_dim+c_dim*2, h_dim1)
self.fc2 = nn.Linear(h_dim1, h_dim2)
self.fc31 = nn.Linear(h_dim2, z_dim)
self.fc32 = nn.Linear(h_dim2, z_dim)
# 解码器
self.fc4 = nn.Linear(c_dim*2+z_dim, h_dim2)
self.fc5 = nn.Linear(h_dim2, h_dim1)
self.fc6 = nn.Linear(h_dim1, x_dim)
# 在编码器的输入中将特征和条件拼接
def encoder(self, x, c1, c2):
concat_input = torch.cat([x, c1, c2], 1)
h = F.relu(self.fc1(concat_input))
h = F.relu(self.fc2(h))
return self.fc31(h), self.fc32(h)
def sampling(self, mu, log_var):
std = torch.exp(0.5*log_var)
eps = torch.randn_like(std)
return eps.mul(std).add(mu)
# 同样在解码器的输入中将特征和条件拼接
def decoder(self, z, c1, c2):
concat_input = torch.cat([z, c1, c2], 1)
h = F.relu(self.fc4(concat_input))
h = F.relu(self.fc5(h))
return torch.sigmoid(self.fc6(h))
def forward(self, x, c1, c2):
mu, log_var = self.encoder(x.view(-1, self.x_dim), c1, c2)
z = self.sampling(mu, log_var)
return self.decoder(z, c1, c2), mu, log_var训练
以下代码在train.py中实现，主要是在训练和测试函数中处理了属性值，对于mr值要缩放10倍，让其分布在[0,16]之间（不超出独热向量的范围）。
python
import pandas as pd
import torch.optim as optim
from config import *
from model import *
# 训练函数
def train(model, train_loader):
train_loss = 0
model.train()
for (graph, logp, mr) in train_loader:
graph = graph.to(DEVICE)
# 生成条件对应的one-hot向量,mr值要缩小10倍
logp = one_hot(logp).to(DEVICE)
mr = one_hot(mr/10).to(DEVICE)
optimizer.zero_grad()
recon_batch, mu, log_var = model(graph, logp, mr)
loss = loss_function(recon_batch, graph, mu, log_var)
loss.backward()
optimizer.step()
train_loss += loss.item()
return train_loss
# 测试函数
def test(model, test_loader):
test_loss= 0
model.eval()
with torch.no_grad():
for (graph, logp, mr) in test_loader:
graph = graph.to(DEVICE)
# 生成条件对应的one-hot向量
logp = one_hot(logp).to(DEVICE)
mr = one_hot(mr/10).to(DEVICE)
recon, mu, log_var = model(graph, logp, mr)
test_loss += loss_function(recon, graph, mu, log_var).item()
return test_loss开始训练模型：
python
if __name__ == "__main__":
# 定义模型，迁移设备
cvae = CVAE()
cvae.to(DEVICE)
# 设置优化器
optimizer = optim.Adam(cvae.parameters(), lr=LR)
print(f'Train device:{DEVICE}')
print('Load Dataset......')
# 载入数据集
from dataset import train_loader, test_loader
print('='*50)
print(f"Train dataset size: {len(train_loader.dataset)} samples")
print(f"Test dataset size: {len(test_loader.dataset)} samples")
print(f"Train loader batch count: {len(train_loader)}")
print(f"Test loader batch count: {len(test_loader)}")
print('='*50)
print('Training the model...')
# 开始迭代训练周期
train_loss_list = []
test_loss_list = []
for epoch in range(1, EPOCH+1):
# 训练周期损失
train_loss = train(cvae, train_loader) / len(train_loader.dataset)
train_loss_list.append(train_loss)
# 测试周期损失
test_loss = test(cvae, test_loader) / len(test_loader.dataset)
test_loss_list.append(test_loss)
print(f'Epoch [{epoch}/{EPOCH}], train loss {train_loss:.4f}; val loss {test_loss:.4f}')
# 保存权重
torch.save(
cvae.state_dict(),
PT_PATH
)
print(f"Saving PTH to:{PT_PATH}")
# 保存每轮损失
import pandas as pd
df = pd.DataFrame({
'Epoch': range(1, len(train_loss_list) + 1),
'Training Loss': train_loss_list,
'Test Loss': test_loss_list
})
df.to_csv(LOSS_PATH, index=False)
print(f"Saving Loss to:{LOSS_PATH}")训练详细信息：

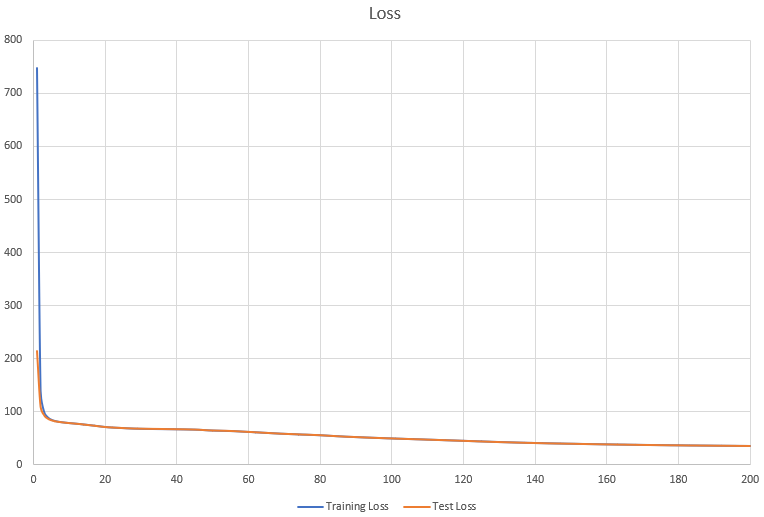

python
Load Dataset......
==================================================
Train dataset size: 90000 samples
Test dataset size: 10000 samples
Train loader batch count: 90
Test loader batch count: 10
==================================================
Training the model...
Epoch [1/200], train loss 747.6686; val loss 213.2999
Epoch [2/200], train loss 139.1853; val loss 109.0857
Epoch [3/200], train loss 99.8494; val loss 93.2989
Epoch [4/200], train loss 89.7221; val loss 87.0099
......
Epoch [196/200], train loss 36.0690; val loss 36.1617
Epoch [197/200], train loss 35.9917; val loss 36.0512
Epoch [198/200], train loss 35.9444; val loss 36.0481
Epoch [199/200], train loss 35.8941; val loss 35.9624
Epoch [200/200], train loss 35.8199; val loss 35.9190
Saving PTH to:./result/model.pth
Saving Loss to:./result/losses.csv损失函数变化曲线：
生成
以下代码在generate.py中实现，主要的差异在生成条件的独热编码，并输入模型（代码标黄部分）。
python
import numpy as np
import pandas as pd
from rdkit import Chem
from rdkit.Chem.Crippen import MolLogP, MolMR
import torch
from config import *
from model import CVAE
from rdkit import RDLogger
RDLogger.DisableLog('rdApp.*')
import warnings
warnings.filterwarnings(action='ignore')
# 分子特征矩阵转为mol对象
def graph_to_mol(node_labels, adjacency, atom_decoder_m, bond_decoder_m, strict=False):
mol = Chem.RWMol()
for node_label in node_labels:
mol.AddAtom(Chem.Atom(atom_decoder_m[node_label]))
for start, end in zip(*np.nonzero(adjacency)):
if start < end:
mol.AddBond(int(start), int(end), bond_decoder_m[adjacency[start, end]])
if strict:
try:
Chem.SanitizeMol(mol)
except:
mol = None
return mol
# 解析推理得到的数据
def cvae_results(
vae,
logP,
MR,
atom_decoder_m,
bond_decoder_m,
gen_num=GEN_NUM,
z_dim=Z_DIM,
cond_DIM=COND_DIM,
atom_types=ATOM_LEN,
bond_types=BOND_LEN,
row_dim=MAX_SIZE,
col_dim=F_COL,
):
with torch.no_grad():
z = torch.randn(int(gen_num), z_dim).to(DEVICE)
c1 = torch.zeros(int(gen_num), cond_DIM).to(DEVICE)
c1[:,logP] = 1
c2 = torch.zeros(int(gen_num), cond_DIM).to(DEVICE)
c2[:,MR] = 1
sample = vae.decoder(z, c1, c2)
smi = []
logp = []
mr = []
for matrix in sample.view(int(gen_num), 1, row_dim, col_dim).cpu():
try:
# 单个分子特征矩阵
matrix = matrix[0]
# 原子数编码矩阵
atom_num = matrix[:, 0]
# 独热转特征
atom_num = torch.argmax(atom_num).item() + 1
# 原子类型编码矩阵
atom_type = matrix[:,1:atom_types+1]
# 原子类型独热编码转类型索引
atom_type = torch.max(atom_type, -1)[1]
# 边特征编码矩阵
bonds = matrix[:, atom_types+1:]
# 边特征独热编码转特征索引的邻接矩阵
bonds = bonds.reshape(row_dim, row_dim, bond_types)
bonds = torch.max(bonds, dim=-1)[1]
# 只保留有效原子部分
nodes_hard_max = atom_type[:atom_num]
edges_hard_max = bonds[:atom_num, :atom_num]
# 从特征矩阵解码还原分子mol对象
mol = graph_to_mol(
nodes_hard_max.numpy(),
edges_hard_max.numpy(),
atom_decoder_m,
bond_decoder_m,
strict=True
)
# 有效性检查
if mol and '.' not in Chem.MolToSmiles(mol):
smi.append(Chem.MolToSmiles(mol))
logp.append(MolLogP(mol))
mr.append(MolMR(mol))
except Exception as e:
print(e)
continue
return pd.DataFrame({'SMILES': smi, 'logP': logp, 'MR': mr})最后把设定的条件输入模型，逐个组合生成需要的分子。
python
if __name__ == '__main__':
# 定义模型，迁移设备
cvae = CVAE()
cvae.to(DEVICE)
# 加载权重
cvae.load_state_dict(torch.load(PT_PATH, map_location=DEVICE), strict=True)
# 条件列
logP_list = CONDITIONS['log_list']
mr_list = CONDITIONS['mr_list']
conditions = [(logp, mr) for logp in logP_list for mr in mr_list]
print('Generating molecules...')
# 生成所有组合
for logp, mr in conditions:
cvae_df = cvae_results(cvae, int(logp), int(mr), atom_decoder_m, bond_decoder_m)
cvae_df.to_csv(f'{RESTULT_PATH}_{logp}_{mr}.csv', index=False)
print(f'Saving {RESTULT_PATH}_{logp}_{mr}.csv ({cvae_df.shape[0]})...')最终会生成多个给定条件的分子文件：
python
Generating molecules...
Saving ./result/result_0_2.csv (1531)...
Saving ./result/result_0_3.csv (3137)...
Saving ./result/result_0_4.csv (3533)...
Saving ./result/result_0_5.csv (3440)...数据分析
最后对模型生成的新分子性质分布做可视化查看，该部分代码在draw.py中实现：
python
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
import matplotlib
from config import *
matplotlib.interactive(True)
# 数据加载
zinc = pd.read_csv('./data/ZINC.csv')
zinc = zinc[zinc['Length'] <= 16].reset_index(drop=True)
zinc_logP = zinc['logP'].tolist()
zinc_MR = [i/10 for i in zinc['MR'].tolist()]
# 样式配置
plt.rcParams["font.family"] = "Arial"
plt.rcParams["font.size"] = 8
plt.rcParams["axes.linewidth"] = 0.8
colors = {
"zinc_logP": "#FFA07A",
"zinc_MR": "#87CEFA",
"cvae_logP": "#CD5C5C",
"cvae_MR": "#4682B4"
}
# 动态获取参数列表
# 从 CONDITIONS 中动态读取，兼容任意长度
logP_list = CONDITIONS.get('logP_list', [])
MR_list = CONDITIONS.get('mr_list', [])
# 动态计算子图布局
n_rows = len(logP_list) # 行数
n_cols = len(MR_list) # 列数
total_plots = n_rows * n_cols # 总子图数
# 动态调整画布尺寸
# 基础尺寸：每列3英寸，每行2英寸，可根据需求调整
fig_width = 3 * n_cols if n_cols * 3 < 18 else 18 # 最大宽度限制18英寸
fig_height = 2 * n_rows if n_rows * 2 < 12 else 12 # 最大高度限制12英寸
# 生成动态子图
fig, axes = plt.subplots(
n_rows, n_cols,
figsize=(fig_width, fig_height),
gridspec_kw={"hspace": 0.4, "wspace": 0.3}
)
# 处理单行列的情况
if n_rows == 1 and n_cols == 1:
axes = np.array([[axes]]) # 转为2D数组
elif n_rows == 1:
axes = axes.reshape(1, -1)
elif n_cols == 1:
axes = axes.reshape(-1, 1)
# 展平用于循环
axes_flat = axes.flatten()
# 填充子图
for idx, ax in enumerate(axes_flat):
# 计算当前子图对应的 logP 和 MR 索引
row_idx = idx // n_cols
col_idx = idx % n_cols
target_logP = logP_list[row_idx]
target_MR = MR_list[col_idx]
try:
df = pd.read_csv(f'./result/result_{target_logP}_{target_MR}.csv')
cvae_logP = df['logP'].tolist()
cvae_MR = [i/10 for i in df['MR'].tolist()]
except FileNotFoundError:
print(f"警告：未找到文件 result_{target_logP}_{target_MR}.csv，跳过该子图")
ax.axis('off')
continue
# 绘制核密度曲线
sns.kdeplot(zinc_logP, color=colors["zinc_logP"], fill=True, alpha=0.5, ax=ax, label="_nolegend_")
sns.kdeplot(zinc_MR, color=colors["zinc_MR"], fill=True, alpha=0.5, ax=ax, label="_nolegend_")
sns.kdeplot(cvae_logP, color=colors["cvae_logP"], fill=True, alpha=0.5, ax=ax, label="_nolegend_")
sns.kdeplot(cvae_MR, color=colors["cvae_MR"], fill=True, alpha=0.5, ax=ax, label="_nolegend_")
# 绘制目标值垂直线
ax.axvline(x=-target_logP, color="red", linestyle="--", linewidth=1)
ax.axvline(x=target_MR, color="blue", linestyle="--", linewidth=1)
# 设置子图标题和轴属性
ax.set_title(f"logP={target_logP}, MR/10={target_MR}", fontsize=9)
ax.set_xlim(-5, 10)
ax.set_ylim(0, 1.4)
ax.set_xlabel("")
ax.set_ylabel("Density", fontsize=7)
ax.tick_params(axis="both", labelsize=7)
# 图例配置
handles = [
plt.Line2D([0], [0], color=colors["zinc_logP"], lw=2, label="ZINC (logP)"),
plt.Line2D([0], [0], color=colors["zinc_MR"], lw=2, label="ZINC (MR/10)"),
plt.Line2D([0], [0], color=colors["cvae_logP"], lw=2, label="CVAE (logP)"),
plt.Line2D([0], [0], color=colors["cvae_MR"], lw=2, label="CVAE (MR/10)")
]
fig.legend(
handles=handles,
labels=[h.get_label() for h in handles],
loc="center left",
bbox_to_anchor=(1.0, 0.5),
fontsize=9,
frameon=True,
borderaxespad=0.1
)
# 布局调整
plt.subplots_adjust(right=0.95)
plt.tight_layout() # 自动调整子图间距
plt.savefig('./result/generate.png', dpi=300, bbox_inches='tight')
plt.show(block=True)

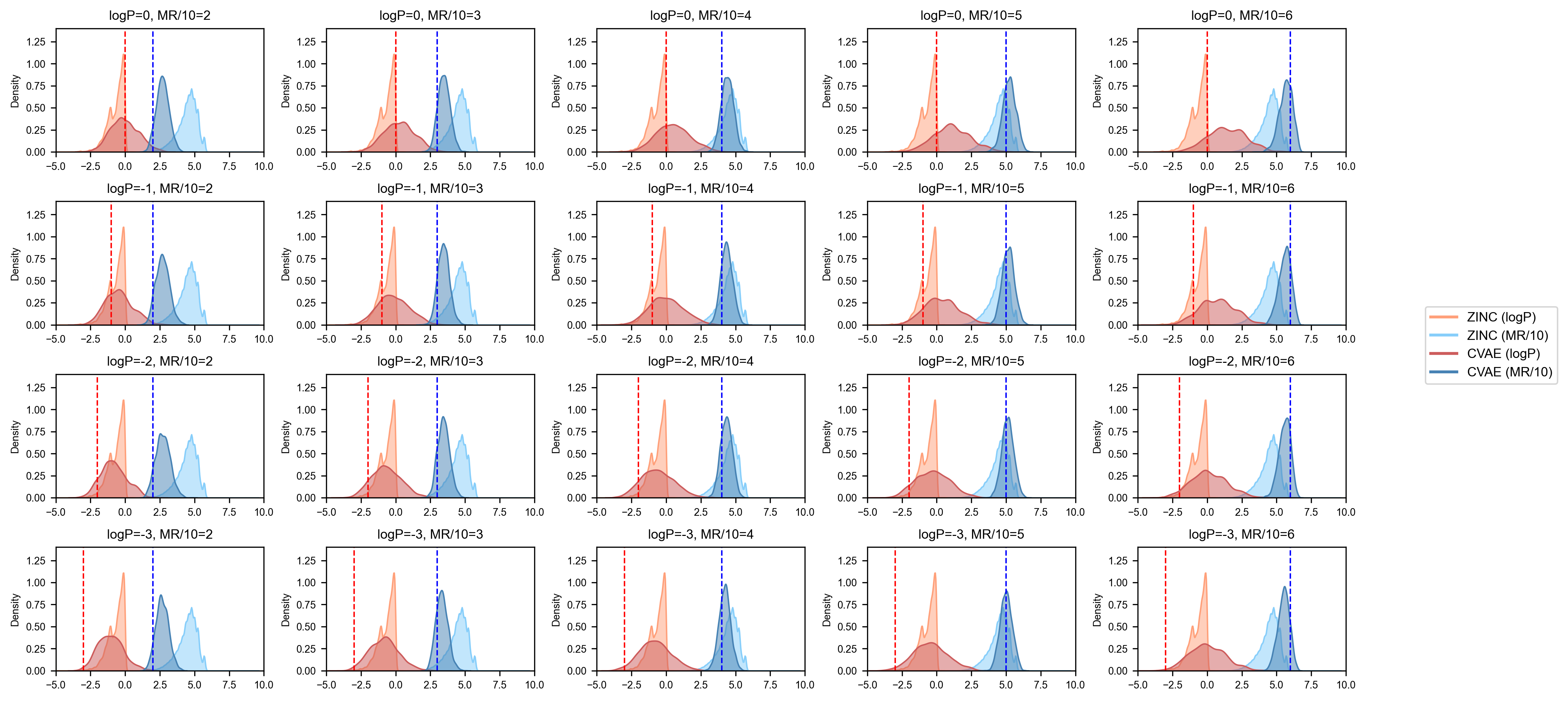

图中深色曲线是模型生成的数据分布，纵向标注线是我们指定的生成条件，可以看到对于MR条件，模型生成的分布和我们给定的条件基本一致，而logP分布匹配一般，这主要是因为训练数据集较少，后续可以尝试全量数据集训练，以达到最佳效果。
